Today is May 22 2011 and the tracker has performed flawlesly. I am very excited about this set up and best of all I BUILT IT! I am now planning to make more of these for my parents home as well as my sisters home. If you are considering building this my recommendation is to DO IT. You will feel good about yourself everyday that you look outside and see the tracker pointing directly at the sun making you Kilowatts galore. This tracker has generated 1002 KW hours since installation. That is about 125 KWH per month since installation on 9/25/2010.
Not too bad for Louisiana weather.
Sunday, May 22, 2011
Tuesday, December 21, 2010
First Year Output
Today is the first year output of the 5.04 system that I have installed on the roof. This system has produced over 7000 Kwh. at about 600 Kwh per month on average. I am quite pleased with this system. This does not include the output from the new 1.2 kw tracker system. So far, I am pleased with my solar projects and have been a valuable lesson in the amount of energy we use to live. The energy is there for the taking, free from the sun.
Tuesday, September 28, 2010
Output Results for the first 2 Days
The first day the output was 6.01 KWh.
The second day the output was 5.6 KWh.
The tracker is working with no problems other than it was tracking slightly ahead of the sun. I had to make a few adjustments and all is well. The parking feature works wonderfully. I highly recommend the Redrok sensor/controllers. So far, I am very pleased with the tracker. Best of all this increased my total daily output by 25 %.
The second day the output was 5.6 KWh.
The tracker is working with no problems other than it was tracking slightly ahead of the sun. I had to make a few adjustments and all is well. The parking feature works wonderfully. I highly recommend the Redrok sensor/controllers. So far, I am very pleased with the tracker. Best of all this increased my total daily output by 25 %.
Saturday, September 25, 2010
Up and Running (09/25/2010)

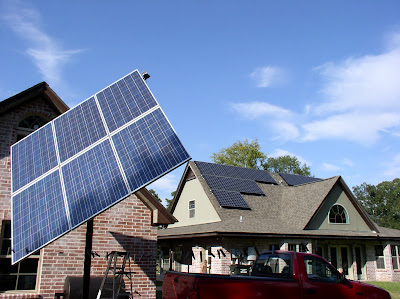

A view of my solar tracker and the roof mount that I did last year.

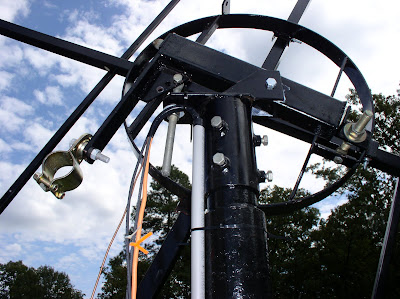

This photo is to show the tracker sensor/controller and how I set it up on the tracker. The housing is made from acrylic that was heated to form the lens shape. The body of the housing was made from a 4x4x4 junction box that was modified to fit the curved lens. Duane's sensor from www.redrok.com was used to control the linear actuator.
The traker is just doing what it does, Track the sun and make electricity that is inverted to AC electricity that is backfed into the grid.

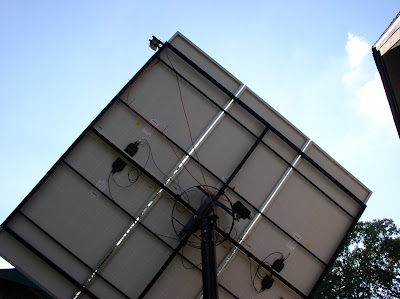

Just so you can see how I wired the panels and sensor.
This photo is to show the tracker sensor/controller and how I set it up on the tracker. The housing is made from acrylic that was heated to form the lens shape. The body of the housing was made from a 4x4x4 junction box that was modified to fit the curved lens. Duane's sensor from www.redrok.com was used to control the linear actuator.
The traker is just doing what it does, Track the sun and make electricity that is inverted to AC electricity that is backfed into the grid.
Just so you can see how I wired the panels and sensor.

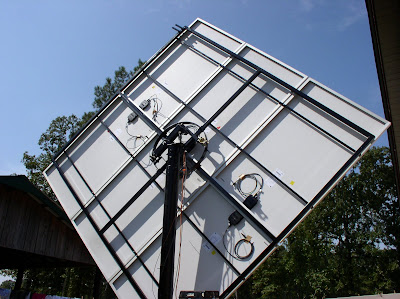

A view from the back of the panels
Another view
All 6 panels now attached
Another view
All 6 panels now attached
Today 9/252010 I completed the installation of my solar grid tie tracker. It works very well. Duane's tracker works great. You can get this from him at http://www.redrok.com/. It we entertaining watching the panels track the sun. Check out the rest of the build photo's
Friday, September 24, 2010
Good Work Today
I decided to make my own sensor/controller so I came up with this idea, I do not know if it works or not so don't duplicate this until I test it. Basically it is a 4x4x4 junction box, ($10.00 at Home Depot). I wanted a curved lens so I cut a piece of my acrylic and placed it in the oven at 250 degrees for about 10 min. The sides were supported but not in the middle. It bowed in the middle like you see in the photo. It was super easy and worked fine.
I traced the radius of my bowed acrylic and cut it out on my bandsaw. I was careful to leave some screw contact boss in each corner.
Hey what do you know, that looks pretty good and best of all it is plastic and will not ground out the sensor as recommended by Duane at Redrok.

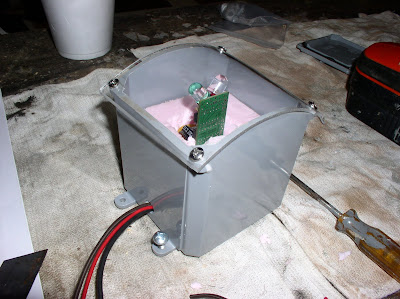

I used some rigid foam to secure the sensor in the cover, works great. Be sure to orient the sensor as Duane describes. I also drilled 2 small holes in the bottom of the sensor for condensation drainage, here in Louisiana we have no shortage of humidity. I hope it works
I traced the radius of my bowed acrylic and cut it out on my bandsaw. I was careful to leave some screw contact boss in each corner.
Hey what do you know, that looks pretty good and best of all it is plastic and will not ground out the sensor as recommended by Duane at Redrok.
I used some rigid foam to secure the sensor in the cover, works great. Be sure to orient the sensor as Duane describes. I also drilled 2 small holes in the bottom of the sensor for condensation drainage, here in Louisiana we have no shortage of humidity. I hope it works
Just a photo to show where I am with the install on this date.

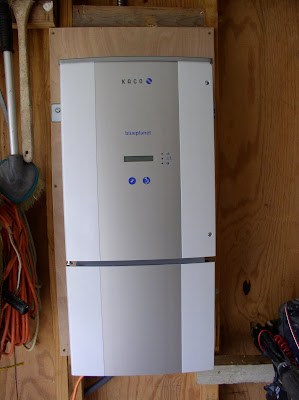

KACO 1502xi Inverter Installed per code in my shop.
KACO 1502xi Inverter Installed per code in my shop.
Nice and clean install with the wires fed from the back of the inverter so that no wiring will be seen (once the wall is sheetrocked.)
Sunday, September 19, 2010
Sensor and Actuator
Installing the Frame
